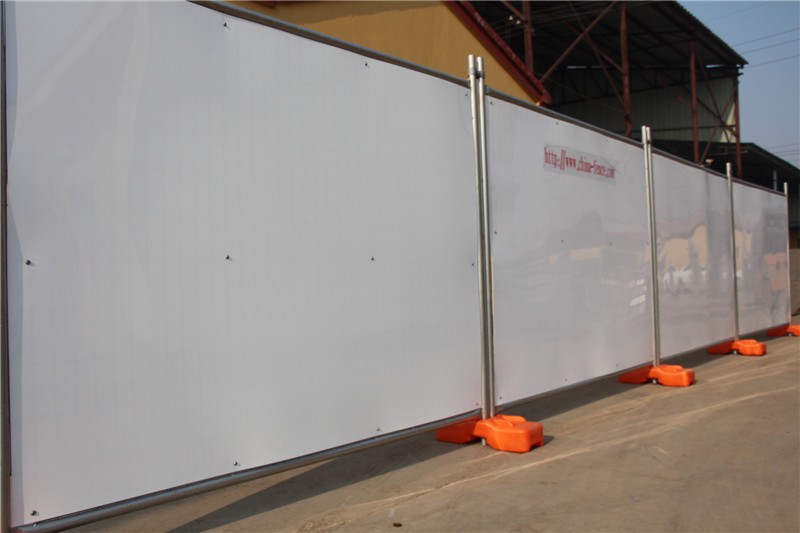

PE abroads soild plastic temporary construction fencing panels for brisbane market 2100mm x 2400mm
TOPFENCE co design and make a series of construction fence panels 2.1m*2.4m OD32mm tubing with a 2.00mm wall thickness and 1.40mm standard temp fence panels to australia we also accept specificial order such as PE abroads soild plastic construction fence panels etc
|
Description
|
|
Material
|
hot dipped galvanized tuber steel and welded wire mesh panel
|
|
Surface treatment
|
hot-dipped galvanized
|
|
Specification
|
|
Wire diameter
|
3mm, 4mm
|
|
H*L
|
2100x2400, 1800x2400, 2100x2900, 2100x3300mm, etc
|
|
Frame pipe O.D.
|
32mm (popular), 42mm, 48mm, etc
|
|
Opening
|
Chain link mesh: 50x50, 60x60mm, etc.
|
|
Welded mesh: 75x75, 75x100, 60x150mm(popular), etc
|
|
Wall thickness
|
1.4mm, 1.8mm or 2mm
|
|
|
|
|
Clamp
|
suit for different outer diameter pipe
75mm center space
100mm center space
|
|
|
|
|
Fence base material
|
plastic base with concrete inside
|
|
Fence base type
|
blow molded: 600x220x150mm
injection molded: 560x240x130mm
|
|
|
|
|
Extra brace frame tube
|
32mm, 42mm or 48mm O.D
|
|
Brace height
|
1.8m
|
1, Feet/bases:
|
Material
|
polypropylene
|
|
Color
|
A variety of brilliant colors are available including red, yellow, orange and blue
|
|
Thickness
|
2.5mm
|
|
Hole Size
|
25mm, 32mm, 38mm, 42mm, 48mm
|
|
Logo attachment
|
Upon your request
|
|
Style
|
Injection Molded Base
|
Size: 560 x 245 x 130mm
|
|
Weight: 33kg
|
|
Blow / film Molded Base
|
Size: 600 x 220 x 150mm
|
|
Weight:29kg
|
|
Two Part Base
|
Size: 600 x 220 x 100mm
|
|
Weight: 15kg
|
2, Brackets:
They tend to reinforcethe entire temporary system and prevent it from tipping over.
3, Clips & pins:
They bind wire meshes tightly together, allowing easy removal and reu

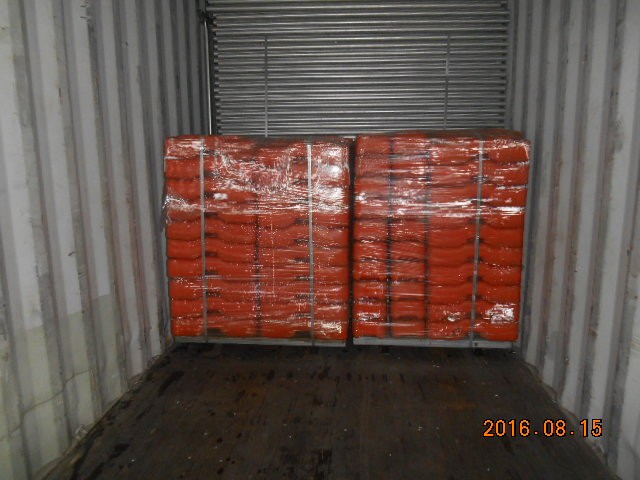

4.Packaging & Loading
--- Feet and top clips in plastic bag
---Panel in nude or in pallet (wood or metal )
---Other special package according to customers’ requirement
5.Features
1.This range of galvanized steel wire fence is easy to install, either in-ground or above-ground, without the need to dig holes or damage the landscaping on which the event is held.
2. Guaranteed long-term use without rusting
3. Allow repeated use, rental, or resale
4. 100% Australian standards compliant
5. The horizontal pipes of the temporary fence are smashed flat to withstand higher loads.
6.Temporary fence production flow:
Pre hot dip galvanized wire drawing--- cut wire and pipes ---wire welded---cut the corners of the mesh---Pre hot dip galvanized pipes welded—polish the welds—paint anti-rust epoxy—spray sliver powder coat on each welds—packaging
